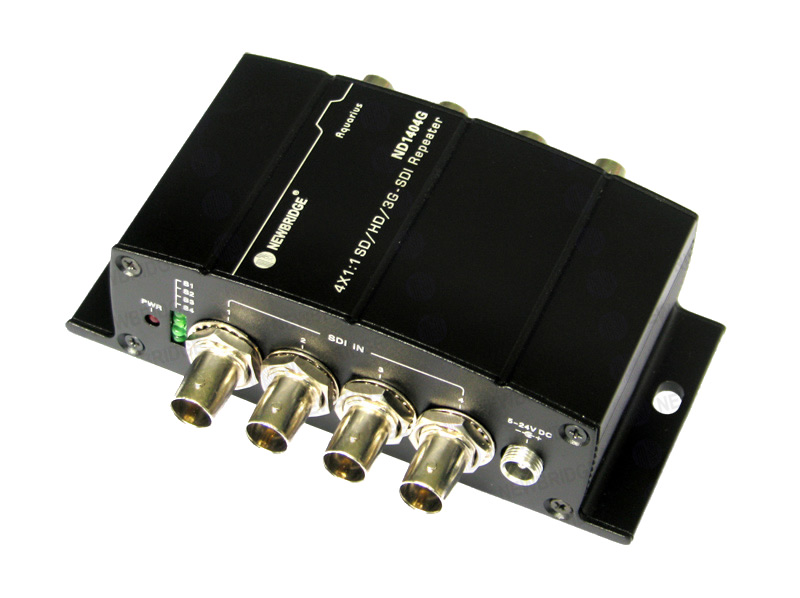

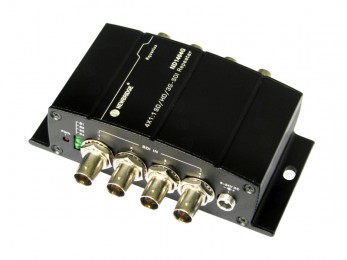

4X1:1 SD/HD/3G-SDI Repeater
These devices are 4 channel 1*1 repeaters with Re-clocking function. These devices receive four SDI input at the same time and perfectly duplicates them. Then they re-transmit four channel SDI outputs for real time multi-viewing. They are reliable video d
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- ◆ SDI Standard: HD-SDI, SD-SDI,3G-SDI ◆ Data Rates: 270Mbps/1.485 Gbps/2.97G ◆ Signal Type: SMPTE 292M, SMPTE 259M,SMPTE 424M ◆ Four separately buffered outputs ◆ Cable equalization (Beldon 1694A) retiming and signalRe-clocking function capability, unlimited repeater connection ◆ Dual color LED indication of input lock and rate ◆ Pass all ancillary data MODEL HY-R1005 Video In 4 piece one SDI port Video Out 4 piece one SDI port Input Signal Type SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) Support Input Format SD-SDI: 480i, 576i HD-SDI: 720p24/25/30/50/59.94/60 all frame rate; 1080i all frame rate, 1035i all frame rate; 1080p all frame rate 3G-SDI: 1080p all frame rate SDI Signal Range 0.8Vp-p SDI Impedance 75 ohms SDI Coupling Type AC Coupling Max. Distance Belden1694A SD-SDI 400m/ 1300ft;HD-SDI 200m/ 600ft ; 3G-SDI140m/ 450ft Re-clocking Auto Support 270Mbps/1.485Gbps/2.97Gbps HD-SDI Connection BNCFemale(75Ω) Power Supply 5V~24V DC Operation Tempeature -10°C-60°C/14°F~140°F Storage Temperature -30°C-70°C/-22°F ~158°F Relative Humidity 20~90%( no condensation) Dimension 93×120×36mm /3.66×4.72×1.42 in
◆ SDI Standard: HD-SDI, SD-SDI,3G-SDI ◆ Data Rates: 270Mbps/1.485 Gbps/2.97G ◆ Signal Type: SMPTE 292M, SMPTE 259M,SMPTE 424M ◆ Four separately buffered outputs ◆ Cable equalization (Beldon 1694A) retiming and signalRe-clocking function capability, unlimited repeater connection ◆ Dual color LED indication of input lock and rate ◆ Pass all ancillary data MODEL HY-R1005 Video In 4 piece one SDI port Video Out 4 piece one SDI port Input Signal Type SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) Support Input Format SD-SDI: 480i, 576i HD-SDI: 720p24/25/30/50/59.94/60 all frame rate; 1080i all frame rate, 1035i all frame rate; 1080p all frame rate 3G-SDI: 1080p all frame rate SDI Signal Range 0.8Vp-p SDI Impedance 75 ohms SDI Coupling Type AC Coupling Max. Distance Belden1694A SD-SDI 400m/ 1300ft;HD-SDI 200m/ 600ft ; 3G-SDI140m/ 450ft Re-clocking Auto Support 270Mbps/1.485Gbps/2.97Gbps HD-SDI Connection BNCFemale(75Ω) Power Supply 5V~24V DC Operation Tempeature -10°C-60°C/14°F~140°F Storage Temperature -30°C-70°C/-22°F ~158°F Relative Humidity 20~90%( no condensation) Dimension 93×120×36mm /3.66×4.72×1.42 in
