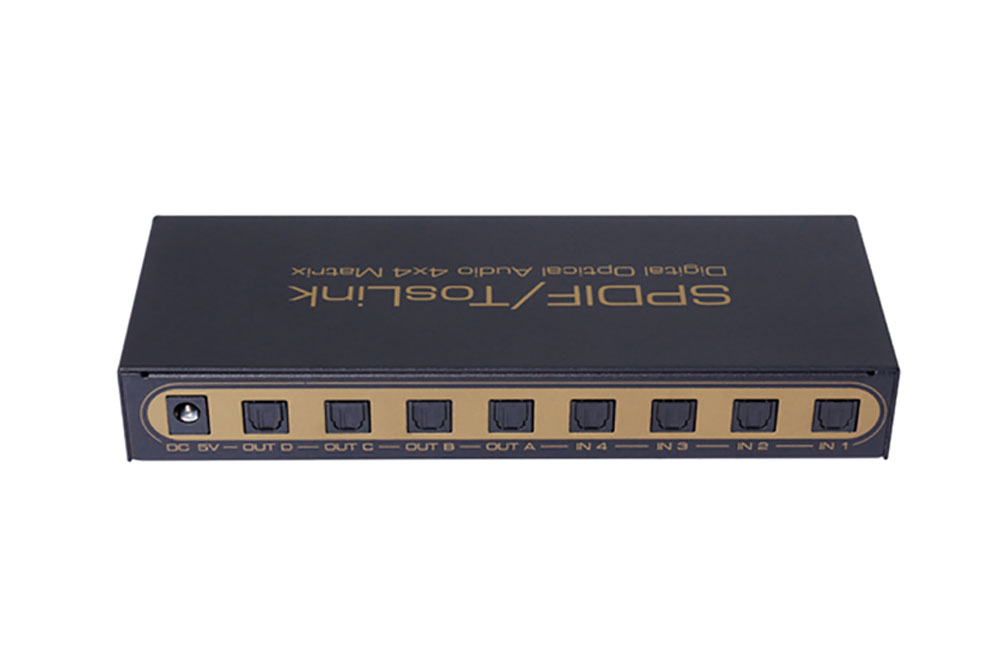

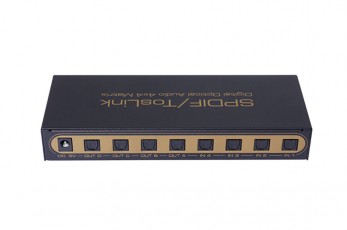

SPDIF/TosLink Dogital Optical Audio 4x4 Matrix
This SPDIF/TosLink Dogital Optical Audio 4x4 Matrix could put the four sets of SPDIF output signal source and four SPDIF input device connected. It can be easily split or switched between four SPDIF signal and four SPDIF signal receiving equipment.
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES
Four ways of optical fiber signal input split or switch to four sets of SPDIF/TosLink signal receiving device.
Audio format support : LPCM2.0/DTS/Dolby-AC3
Support signal retiming
Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 30m.
The input control can through R/M and also can directly press the button.
Support last time working state memory when power off.
Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine, if the light for standby indication flashed, it shows that the output voltage from the power adaptor is too high and the adaptor needs to be changed.
Support power on boot and power on standby two modes.( Default is power on standby mode).
LED status indication, it can tell us the working state of the device very easily.
No loss of quality
Installs in minutes
Need DC5V/1A power supply
SPECIFICATIONS: ADMX0404M1
Support audio format..................LPCM2.0/DTS/Dolby-AC3
Peak wavelength..........................................650nm
Max baud rate..................................16Mbps
Output cable distance ........ .≤30m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current...............................200mA
Power adapter format.......Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range....................... (0 to +40℃)
Operating Humidity range.................5 to 90%RH (No Condensation)
Dimension (L x W x H).......................66x178.5x28 (mm)
Weight.....................................360g
Operation：
