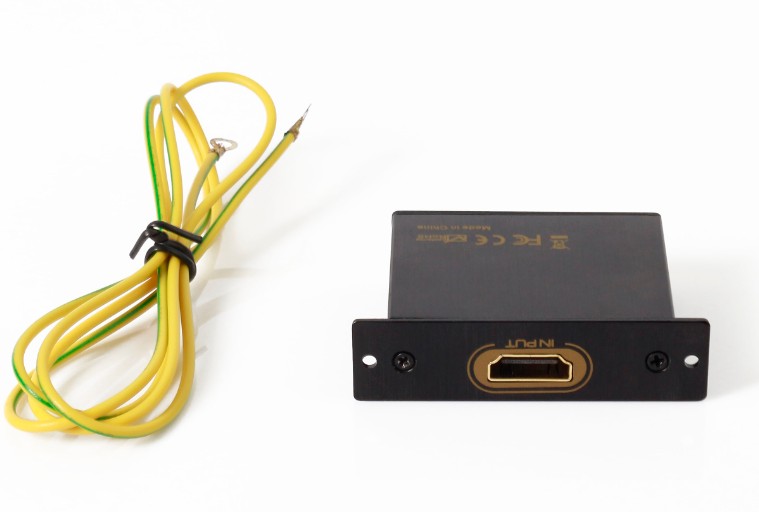

HDMI Surge Protector
The HDMI surge protector is designed for protect the HDMI device that against with the static discharge, lighting surge, electrical fast transient burst. It is all active at all TMDS/DDC/HPD and CEC channels of connected HDMI signals and it can do final d
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES
Protect HDMI input and output for ESD and Lightning Surge
Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).
Meet IEC 61000-4-4 (EFT) 40A (5/50ns).
Meet IEC 61000-4-5 (Lightning) 5A (8/20µs).
Support HDMI 1.4 with 3D,4KX2K and HEAC.
Solid-state silicon-avalanche technology.
Support HDCP
No loss of quality
Installs in minutes
No Need Power Adptor
SPECIFICATIONS: HDEX001M1
HDMI version..................... HDMI 1.4 with 3D 、4Kx2K、HEAC
HDMI resolution ..............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ...................24bit/deep color 30bit,36bit, 48bit
Support audio format....DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth.................................340MHz
Max baud rate.................................10.2Gbps
Input/Output TMDS signal ...................... ...0.5~1.5Volts p-p(TTL)
Input/Output DDC signal .......................... 5Volts p-p (TTL)
Max working current..................................50mA
Operating Temperature range....................... (-15 to +55℃)
Operating Humidity range..................5 to 90%RH (No Condensation)
Dimension (L x W x H) ........................43.5x64x16.5 (mm)
Weight.........................................40g
Operation
FEATURES
Protect HDMI input and output for ESD and Lightning Surge
Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).
Meet IEC 61000-4-4 (EFT) 40A (5/50ns).
Meet IEC 61000-4-5 (Lightning) 5A (8/20µs).
Support HDMI 1.4 with 3D,4KX2K and HEAC.
Solid-state silicon-avalanche technology.
Support HDCP
No loss of quality
Installs in minutes
No Need Power Adptor
SPECIFICATIONS: HDEX001M1
HDMI version..................... HDMI 1.4 with 3D 、4Kx2K、HEAC
HDMI resolution ..............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ...................24bit/deep color 30bit,36bit, 48bit
Support audio format....DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth.................................340MHz
Max baud rate.................................10.2Gbps
Input/Output TMDS signal ...................... ...0.5~1.5Volts p-p(TTL)
Input/Output DDC signal .......................... 5Volts p-p (TTL)
Max working current..................................50mA
Operating Temperature range....................... (-15 to +55℃)
Operating Humidity range..................5 to 90%RH (No Condensation)
Dimension (L x W x H) ........................43.5x64x16.5 (mm)
Weight.........................................40g
Operation
Protect HDMI input and output for ESD and Lightning Surge
Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).
Meet IEC 61000-4-4 (EFT) 40A (5/50ns).
Meet IEC 61000-4-5 (Lightning) 5A (8/20µs).
Support HDMI 1.4 with 3D,4KX2K and HEAC.
Solid-state silicon-avalanche technology.
Support HDCP
No loss of quality
Installs in minutes
No Need Power Adptor
SPECIFICATIONS: HDEX001M1
HDMI version..................... HDMI 1.4 with 3D 、4Kx2K、HEAC
HDMI resolution ..............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ...................24bit/deep color 30bit,36bit, 48bit
Support audio format....DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth.................................340MHz
Max baud rate.................................10.2Gbps
Input/Output TMDS signal ...................... ...0.5~1.5Volts p-p(TTL)
Input/Output DDC signal .......................... 5Volts p-p (TTL)
Max working current..................................50mA
Operating Temperature range....................... (-15 to +55℃)
Operating Humidity range..................5 to 90%RH (No Condensation)
Dimension (L x W x H) ........................43.5x64x16.5 (mm)
Weight.........................................40g
Operation
