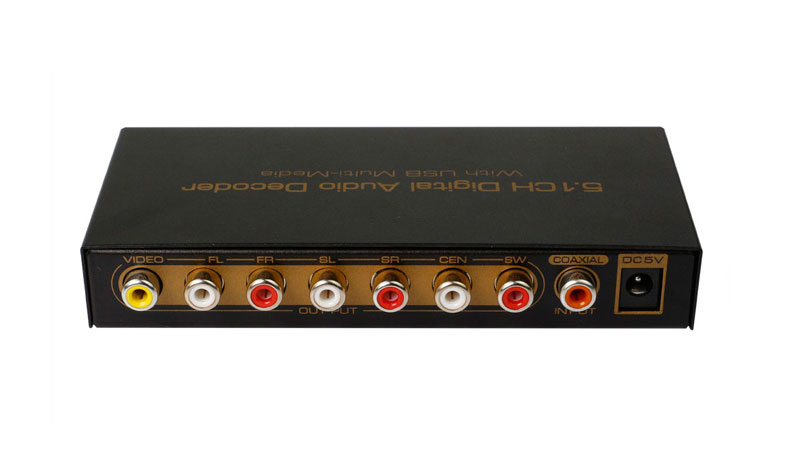

5.1CH Digital Audio Decoder
5.1CH Digital Audio Decoder
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- Feature：
- Two-Ports SPDIF (1 x Optical and 1 x Coaxial) digital audio input, one USB2.0 interface. You can
- switch freely between different signal sources.
- Output 5.1 channel analog audio and 1 x CVBS , can be connect to the amplifier or TV
- Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC
- Support for multiple EQ model
- Support digital audio formats: Dolby digital (AC3), DTS, LPCM
- Support multimedia playback of USB disk, can play music, video, photo and text files
- The USB port can provide charging for mobile devices
- Automatic identification input digital audio signal format, automatic track test
- Support stereo and 5.1 channel two output modes, can be flexible with speaker
- High tone quality, low noise
- One button to switch mode, simple to operate.
- Support for remote operation, visual menu interface
- Power-off memory
- DC5V/1A power adapter
SPECIFICATIONS: ADSW0007M1
- Digital audio decode format...................Dolby Digital (AC3)/DTS/LPCM
- USB playback music format.......................MP3 / WMA / AAC / WAV
- USB playback video format..... Divx3.11,4.x,5.x/Xvid/AVI/MJPEG/VOB/VCD(Dat)/MPG1,2,4
- USB playback photo format............ JPG (Resolution range: 16x16～10000x10000)
- DSP sample frequency range........................... 32～96 KHz
- DSP Bit rate range................................16～24 Bit
- Digital input level...............................0.1~1Volts p-p
- Analog output level(1kHz@0dB)..............................................1V RMS
- SNR @ 0dB(CCIR/ARM)..............................≥85dB
- Distortion......................................≤0.1%
- Frequency response..............................20Hz~20KHz
- Max working current ....................................400mA
- Power adapter format Input ....................... AC 100V～240V 50HZ/60Hz, DC5V/1A
- Operating Temperature range ............................ -10 to +55℃
- Storage Temperature range........................... -20 to +60℃
- Operating Humidity range .....................10 to 90%RH (No Condensation)
- Storage Humidity range......................5 to 95%RH (No Condensation)
- Case Dimension (L x W x H) .......................... 139x64x22 (mm)
- Weight ......................................... 210g
Feature：
SPECIFICATIONS: ADSW0007M1
- Two-Ports SPDIF (1 x Optical and 1 x Coaxial) digital audio input, one USB2.0 interface. You can
- switch freely between different signal sources.
- Output 5.1 channel analog audio and 1 x CVBS , can be connect to the amplifier or TV
- Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC
- Support for multiple EQ model
- Support digital audio formats: Dolby digital (AC3), DTS, LPCM
- Support multimedia playback of USB disk, can play music, video, photo and text files
- The USB port can provide charging for mobile devices
- Automatic identification input digital audio signal format, automatic track test
- Support stereo and 5.1 channel two output modes, can be flexible with speaker
- High tone quality, low noise
- One button to switch mode, simple to operate.
- Support for remote operation, visual menu interface
- Power-off memory
- DC5V/1A power adapter
SPECIFICATIONS: ADSW0007M1
- Digital audio decode format...................Dolby Digital (AC3)/DTS/LPCM
- USB playback music format.......................MP3 / WMA / AAC / WAV
- USB playback video format..... Divx3.11,4.x,5.x/Xvid/AVI/MJPEG/VOB/VCD(Dat)/MPG1,2,4
- USB playback photo format............ JPG (Resolution range: 16x16～10000x10000)
- DSP sample frequency range........................... 32～96 KHz
- DSP Bit rate range................................16～24 Bit
- Digital input level...............................0.1~1Volts p-p
- Analog output level(1kHz@0dB)..............................................1V RMS
- SNR @ 0dB(CCIR/ARM)..............................≥85dB
- Distortion......................................≤0.1%
- Frequency response..............................20Hz~20KHz
- Max working current ....................................400mA
- Power adapter format Input ....................... AC 100V～240V 50HZ/60Hz, DC5V/1A
- Operating Temperature range ............................ -10 to +55℃
- Storage Temperature range........................... -20 to +60℃
- Operating Humidity range .....................10 to 90%RH (No Condensation)
- Storage Humidity range......................5 to 95%RH (No Condensation)
- Case Dimension (L x W x H) .......................... 139x64x22 (mm)
- Weight ......................................... 210g
