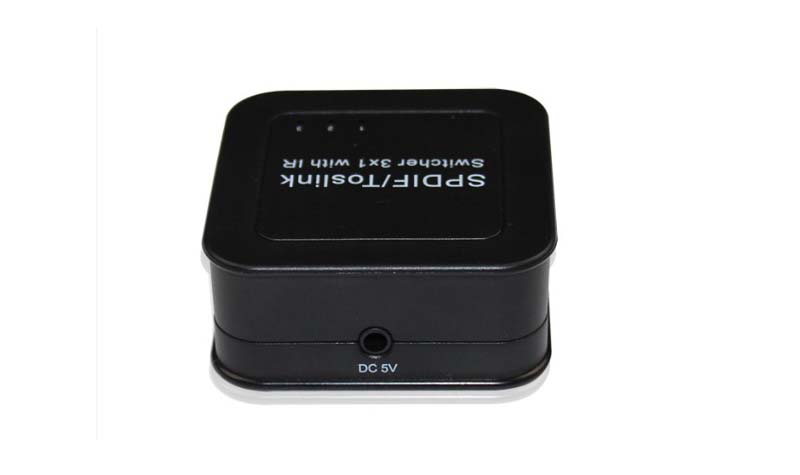

Digital Optical Audio 3x1 Switchers
This SPDIF/TosLink Digital Optical Audio Switchers can let the users to connect three digital optical TosLink sources to one optical TosLink (SPDIF) input on your AV amplifier.
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- Feature：
- Three ways of optical fiber signals switch to one sets of SPDIF/TosLink signal receiving device.
- Audio format support : LPCM2.0/DTS/Dolby-AC3
- Support signal retiming
- Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
- The input control can through R/M and also can directly press the button
- Support last time working state memory when power off
- Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
- LED status indication
- No loss of quality
- Installs in minutes
- Need DC5V/500mA power supply
SPECIFICATIONS: ADSW0301M1
- Support audio format.....................LPCM2.0/DTS/Dolby-AC3
- Peak wavelength............................................650nm
- Max baud rate..................................16Mbps
- Output cable distance ........ .≤40m(Use the optical fiber cable loss less the 0.2Db/m )
- Max working current...............................100mA
- Power adapter format.....Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA
- Operating Temperature range....................... (0 to +40℃)
- Operating Humidity range.................5 to 90%RH (No Condensation)
- Dimension (L x W x H).......................54x54x23.5 (mm)
- Weight.....................................35g
Feature：
SPECIFICATIONS: ADSW0301M1
- Three ways of optical fiber signals switch to one sets of SPDIF/TosLink signal receiving device.
- Audio format support : LPCM2.0/DTS/Dolby-AC3
- Support signal retiming
- Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
- The input control can through R/M and also can directly press the button
- Support last time working state memory when power off
- Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
- LED status indication
- No loss of quality
- Installs in minutes
- Need DC5V/500mA power supply
SPECIFICATIONS: ADSW0301M1
- Support audio format.....................LPCM2.0/DTS/Dolby-AC3
- Peak wavelength............................................650nm
- Max baud rate..................................16Mbps
- Output cable distance ........ .≤40m(Use the optical fiber cable loss less the 0.2Db/m )
- Max working current...............................100mA
- Power adapter format.....Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA
- Operating Temperature range....................... (0 to +40℃)
- Operating Humidity range.................5 to 90%RH (No Condensation)
- Dimension (L x W x H).......................54x54x23.5 (mm)
- Weight.....................................35g
