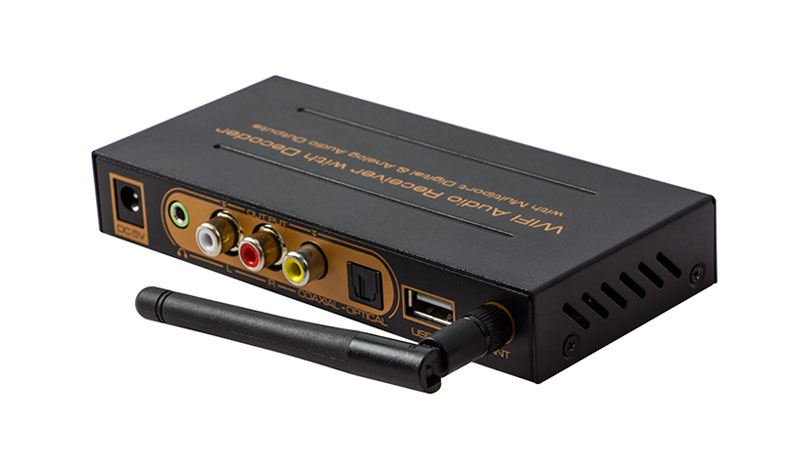

WiFi Audio Receiver with Deocder
This product can be easily connected to the PC, mobile phone, PDA by WiFi, It can achieve long-distance transmission of HIFI grade audio. It also supports multiport lossless digital audio and analog audio output at the same time. You can connect any power
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES：
- Supports 1x optical and 1x coaxial digital audio outputs.
- Supports 1x RCA analog audio output and 1x headphone output.
- Support HIFI and lossless Music.
- Support multi audio formats and MTV or other video formats playback.
- Support SPDIF 2.1/5.1 sound channel.
- Support Dolby/DTS bit stream transmission, and decoding output stereo analog audio.
- 1x USB2.0 interface, Support AirDisk (WiFi Storage)
- Support internet radio and online music from internet.
- Supports DLNA, Airplay, Qplay and EZcast.
- Support multiple operating systems, e.g. Win XP, Win Vista, Win7/8, Windows Phone, Android, iOS, Mac OS etc.
- Support online firmware update and we will put them into development roadmap.
- Multi language menu
SPECIFICATIONS: ADCN0004M1
- Support audio format .............MP3, AAC, WAV, FLAC, APE, WMA, DTS, AC3, M4A
- Wireless Frequency range..........................2.4～2.4835GHz
- Wireless transmission rate............................. 150Mbps
- Wireless transmit power..........................15dBm (MAX TX)
- Wireless transmission distance........................100m (no obstacle)
- DAC Decoding ability...............................24 Bit / 96KHz
- SPDIF coaxial output level.............................0.5V p-p
- L/R output level(1kHz@0dB).......................................2V RMS
- Headphone output power (1kHz@0dB RL=16)......................20mW
- SNR @ 0dB(CCIR/ARM)................................92dB
- THD+N(-6dB input)..................................-85dB
- Frequency response...............................20Hz~20KHz
- Max working current....................................430mA
- Power adapter format Input...............AC 100V～240V 50HZ/60HZ; DC5V/1A
- Operating Temperature range..............................0 to +40℃
- Storage Temperature range..............................-20 to +60℃
- Operating Humidity range.....................10 to 90%RH (No Condensation)
- Storage Humidity range........................5 to 95%RH (No Condensation)
- Case size (L x W x H) ............................. .139x64x22 (mm)
- Weight..........................................85g
FEATURES：
SPECIFICATIONS: ADCN0004M1
- Supports 1x optical and 1x coaxial digital audio outputs.
- Supports 1x RCA analog audio output and 1x headphone output.
- Support HIFI and lossless Music.
- Support multi audio formats and MTV or other video formats playback.
- Support SPDIF 2.1/5.1 sound channel.
- Support Dolby/DTS bit stream transmission, and decoding output stereo analog audio.
- 1x USB2.0 interface, Support AirDisk (WiFi Storage)
- Support internet radio and online music from internet.
- Supports DLNA, Airplay, Qplay and EZcast.
- Support multiple operating systems, e.g. Win XP, Win Vista, Win7/8, Windows Phone, Android, iOS, Mac OS etc.
- Support online firmware update and we will put them into development roadmap.
- Multi language menu
SPECIFICATIONS: ADCN0004M1
- Support audio format .............MP3, AAC, WAV, FLAC, APE, WMA, DTS, AC3, M4A
- Wireless Frequency range..........................2.4～2.4835GHz
- Wireless transmission rate............................. 150Mbps
- Wireless transmit power..........................15dBm (MAX TX)
- Wireless transmission distance........................100m (no obstacle)
- DAC Decoding ability...............................24 Bit / 96KHz
- SPDIF coaxial output level.............................0.5V p-p
- L/R output level(1kHz@0dB).......................................2V RMS
- Headphone output power (1kHz@0dB RL=16)......................20mW
- SNR @ 0dB(CCIR/ARM)................................92dB
- THD+N(-6dB input)..................................-85dB
- Frequency response...............................20Hz~20KHz
- Max working current....................................430mA
- Power adapter format Input...............AC 100V～240V 50HZ/60HZ; DC5V/1A
- Operating Temperature range..............................0 to +40℃
- Storage Temperature range..............................-20 to +60℃
- Operating Humidity range.....................10 to 90%RH (No Condensation)
- Storage Humidity range........................5 to 95%RH (No Condensation)
- Case size (L x W x H) ............................. .139x64x22 (mm)
- Weight..........................................85g
