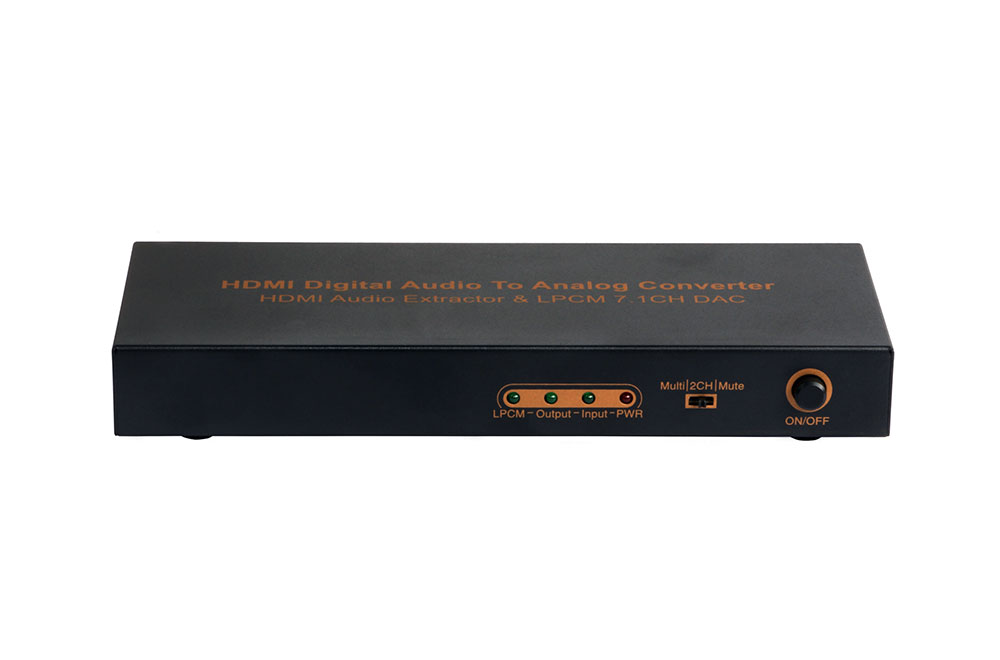

LPCM 7.1CH HDMI Audio Converter
The HDMI Converter allows you to extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or analog multi-channel output. This product supports 2CH, 5.1CH, 7.1CH LPCM digital audio format
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES：
- 1X HDMI input and 1X HDMI output，can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, multi-channel RCA analog audio output
- Supports 12-bit Deep Color Full HD,3D and 4K2K video
- Support CEC
- Support multi-channel LPCM digital audio to analog output, up to 7.1CH.
- Uses 24bit /192KHz DAC
- LPCM audio format indicator
- Supports 3 modes for audio output. You can switch among multi-channel, stereo (2CH) and mute.
- High tone quality, low noise
- DC5V power adapter
SPECIFICATIONS: HDCN0033M1
- HDMI resolution ........................up to 4K/30Hz, 1080P/1080I/720P/576P/480P/60Hz
- Support video color format ........................24bit/deep color 30bit,36bit
- HDMI Audio Format.............DTS-HD/Dolby-TrueHD/LPCM/DTS/Dolby-AC3/DSD
- Digital audio convert format........................LPCM, up to 7.1CH
- HDMI Max bandwidth..................................300MHz
- HDMI Max baud rate................................ .9 Gbps
- Input/Output TMDS signal .........................0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ............................ 5Volts p-p (TTL)
- DAC sample frequency range.......................... 32～192 KHz
- DAC Bit rate range................................16～24 Bit
- RCA analog output level.....................................................2V RMS
- SNR (1KHz@ 0dB).................................≥90dB
- THD+N (1KHz@ 0dB)..................................≤0.01%
- Frequency response..............................20Hz~20KHz
- HDMI input cable distance................≤15m AWG26 HDMI standard cable
- HDMI output cable distance.......≤15m（1080P）/8m(4K) AWG26 HDMI standard cable
- Max working current ....................................500mA
- Power adapter format Input ....................... AC 100V～240V 50HZ/60Hz, DC5V/1A
- Operating Temperature range ............................ -10 to +55℃
- Storage Temperature range........................... -20 to +60℃
- Operating Humidity range .....................10 to 90%RH (No Condensation)
- Storage Humidity range......................5 to 95%RH (No Condensation)
- Case Dimension (L x W x H) ......................... 205x74x26 (mm)
- Weight ......................................... 360g
FEATURES：
SPECIFICATIONS: HDCN0033M1
- 1X HDMI input and 1X HDMI output，can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, multi-channel RCA analog audio output
- Supports 12-bit Deep Color Full HD,3D and 4K2K video
- Support CEC
- Support multi-channel LPCM digital audio to analog output, up to 7.1CH.
- Uses 24bit /192KHz DAC
- LPCM audio format indicator
- Supports 3 modes for audio output. You can switch among multi-channel, stereo (2CH) and mute.
- High tone quality, low noise
- DC5V power adapter
SPECIFICATIONS: HDCN0033M1
- HDMI resolution ........................up to 4K/30Hz, 1080P/1080I/720P/576P/480P/60Hz
- Support video color format ........................24bit/deep color 30bit,36bit
- HDMI Audio Format.............DTS-HD/Dolby-TrueHD/LPCM/DTS/Dolby-AC3/DSD
- Digital audio convert format........................LPCM, up to 7.1CH
- HDMI Max bandwidth..................................300MHz
- HDMI Max baud rate................................ .9 Gbps
- Input/Output TMDS signal .........................0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ............................ 5Volts p-p (TTL)
- DAC sample frequency range.......................... 32～192 KHz
- DAC Bit rate range................................16～24 Bit
- RCA analog output level.....................................................2V RMS
- SNR (1KHz@ 0dB).................................≥90dB
- THD+N (1KHz@ 0dB)..................................≤0.01%
- Frequency response..............................20Hz~20KHz
- HDMI input cable distance................≤15m AWG26 HDMI standard cable
- HDMI output cable distance.......≤15m（1080P）/8m(4K) AWG26 HDMI standard cable
- Max working current ....................................500mA
- Power adapter format Input ....................... AC 100V～240V 50HZ/60Hz, DC5V/1A
- Operating Temperature range ............................ -10 to +55℃
- Storage Temperature range........................... -20 to +60℃
- Operating Humidity range .....................10 to 90%RH (No Condensation)
- Storage Humidity range......................5 to 95%RH (No Condensation)
- Case Dimension (L x W x H) ......................... 205x74x26 (mm)
- Weight ......................................... 360g
