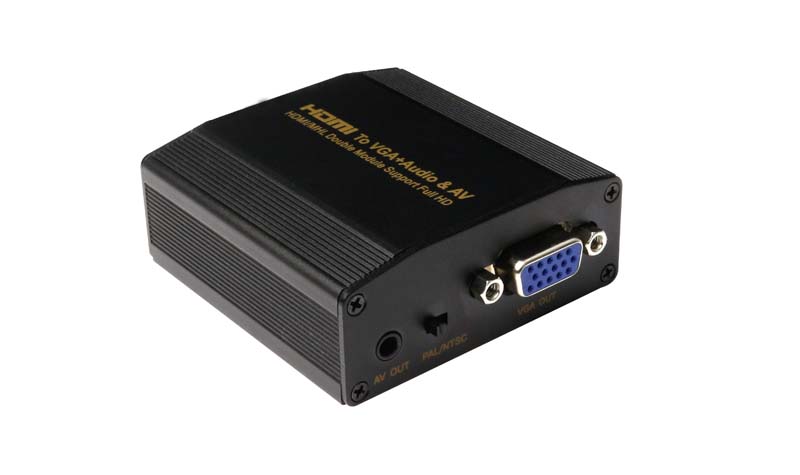

HDMI TO VGA+Audio & AV
The HDMI converter can convert one input HDMI signal or MHL signal into a VGA & AV analog video signal output and L/R stereo analog audio output simultaneously. The HDMI input port can be connected to any standard HDMI signal source device (such as the DV
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES:
- One single HDMI or one single MHL signal input convert to one single VGA signal and one single AV signal (CVBS signal and L/R analog audio signal) output, one single VGA analog audio signal output.
- Support HDMI input:
- 640×480@60Hz、800×600@60Hz、1024×768@60Hz、1280×720@60Hz、1280×768@60Hz、
- 1280×800@60Hz、1280×1024@60Hz、1360×768@60Hz、1440×900@60H、1440×1050@60H、
- 1600×1200@60H、1680×1050@60H、1920×1080@60Hz
- Done Enhancement at the Brightness, Contrast Ratio and the Color using the video processing technology
- VGA output resolution format with the input format automatically changes
- HDMI or MHL high-definition signals through scale down processing, Can output standard CVBS signal
- Built-in digital audio decoder, the LPCM/PCM digital audio decoding into analog stereo output
- Low-power digital single chip solution, less heat and long time stability
- Support input up to 15 meters AWG26 cable length
- Easy to Install and Automatically Check the input signal
- Need DC5V/1A power supply
- HDMI input maximum resolution.....................................1920×1080@60Hz
- VGA output maximum resolution..........................1920×1080@60Hz
- CVBS Signal output............ ............... 0.5~1.0Volts p-p 75ohm
- Analog audio (L/R) output ................................... 0.5~2 Volts p-p 47k ohm
- Max bandwidth................................... 165MHz
- Input cable distance................... ≤15m AWG26 HDMI standard cable
- Output cable distance (VGA&AV) ..................... ≤8m standard cable
- Max working current................................650mA
- Power adapter format..................................DC5V/1A
- Operating Temperature range............................ -0 to +40℃
- Operating Humidity range.................... 5 to 90%RH(No Condensation)
- Dimension (L x W x H)..........................64X64X25.5 (mm)
- Weight...................................... 100g
FEATURES:
- One single HDMI or one single MHL signal input convert to one single VGA signal and one single AV signal (CVBS signal and L/R analog audio signal) output, one single VGA analog audio signal output.
- Support HDMI input:
- 640×480@60Hz、800×600@60Hz、1024×768@60Hz、1280×720@60Hz、1280×768@60Hz、
- 1280×800@60Hz、1280×1024@60Hz、1360×768@60Hz、1440×900@60H、1440×1050@60H、
- 1600×1200@60H、1680×1050@60H、1920×1080@60Hz
- Done Enhancement at the Brightness, Contrast Ratio and the Color using the video processing technology
- VGA output resolution format with the input format automatically changes
- HDMI or MHL high-definition signals through scale down processing, Can output standard CVBS signal
- Built-in digital audio decoder, the LPCM/PCM digital audio decoding into analog stereo output
- Low-power digital single chip solution, less heat and long time stability
- Support input up to 15 meters AWG26 cable length
- Easy to Install and Automatically Check the input signal
- Need DC5V/1A power supply
- HDMI input maximum resolution.....................................1920×1080@60Hz
- VGA output maximum resolution..........................1920×1080@60Hz
- CVBS Signal output............ ............... 0.5~1.0Volts p-p 75ohm
- Analog audio (L/R) output ................................... 0.5~2 Volts p-p 47k ohm
- Max bandwidth................................... 165MHz
- Input cable distance................... ≤15m AWG26 HDMI standard cable
- Output cable distance (VGA&AV) ..................... ≤8m standard cable
- Max working current................................650mA
- Power adapter format..................................DC5V/1A
- Operating Temperature range............................ -0 to +40℃
- Operating Humidity range.................... 5 to 90%RH(No Condensation)
- Dimension (L x W x H)..........................64X64X25.5 (mm)
- Weight...................................... 100g
