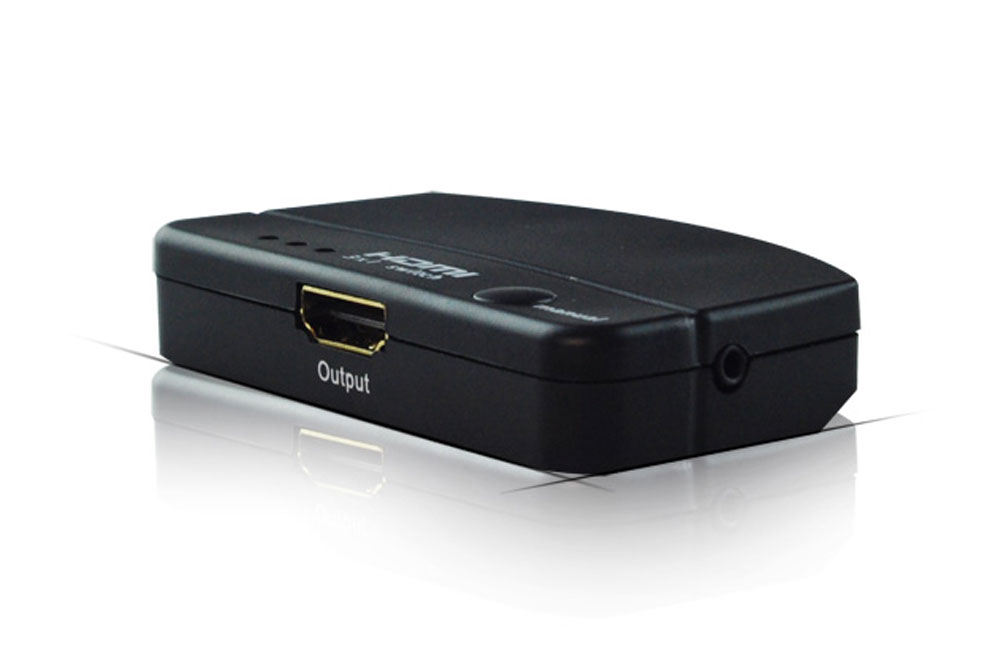

MINI 3x1 HDMI Switcher
The 3x1 HDMI Switcher allows access to multiple HDMI sources, using a single HDMI sink. The Switcher allows three HDMI devices to be switched easily through one HDMI compatible monitor or projector. The Switcher can also be placed at the end of a long H
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES：
- Three HDMI 1 .3 input signals switched to a single HDMI 1 .3 sink devices
- HDCP 1 .2 protocol compliant
- Support deep color 30bit, 36bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD
- Support signal retiming
- Support input up to 15metres AWG26 HDMI 1 .3 standard cable length,
- output up to 25metres AWG26 cable length
- Inputs can be switched by button.
- It can smartly jump over those input sources which are not connected.
- No loss of quality
- Installs in minutes
- 0.5M HDMI Cable is attached with the package box. Users can also use their own HDMI Cables.
SPECIFICATIONS: HDSW1201
- HDMI version.............................. HDMI 1 .3
- HDCP version................................HDCP1 .2
- HDMI resolution .............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format ..................24bit/deep color 30bit,36bit
- Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD
- Max bandwidth.............................250MHz
- Max baud rate...............................7.5Gbps
- Input/Output TMDS signal .......................0.5~1 .5Volts p-p(TTL)
- Input/Output DDC signal ....................... 5Volts p-p (TTL)
- Input cable distance...... ............≤15m AWG26 HDMI 1 .3 standard cable
- Output cable distance................≤25m AWG26 HDMI 1 .3 standard cable
- Max working current..............................350mA
- Operating Temperature range....................... (-15 to +55℃)
- Operating Humidity range.................5 to 90%RH (No Condensation)
- Dimension (L x W x H) ........................66X50X1 9(mm)
- Weight......................................31 g
FEATURES：
SPECIFICATIONS: HDSW1201
- Three HDMI 1 .3 input signals switched to a single HDMI 1 .3 sink devices
- HDCP 1 .2 protocol compliant
- Support deep color 30bit, 36bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD
- Support signal retiming
- Support input up to 15metres AWG26 HDMI 1 .3 standard cable length,
- output up to 25metres AWG26 cable length
- Inputs can be switched by button.
- It can smartly jump over those input sources which are not connected.
- No loss of quality
- Installs in minutes
- 0.5M HDMI Cable is attached with the package box. Users can also use their own HDMI Cables.
SPECIFICATIONS: HDSW1201
- HDMI version.............................. HDMI 1 .3
- HDCP version................................HDCP1 .2
- HDMI resolution .............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format ..................24bit/deep color 30bit,36bit
- Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD
- Max bandwidth.............................250MHz
- Max baud rate...............................7.5Gbps
- Input/Output TMDS signal .......................0.5~1 .5Volts p-p(TTL)
- Input/Output DDC signal ....................... 5Volts p-p (TTL)
- Input cable distance...... ............≤15m AWG26 HDMI 1 .3 standard cable
- Output cable distance................≤25m AWG26 HDMI 1 .3 standard cable
- Max working current..............................350mA
- Operating Temperature range....................... (-15 to +55℃)
- Operating Humidity range.................5 to 90%RH (No Condensation)
- Dimension (L x W x H) ........................66X50X1 9(mm)
- Weight......................................31 g
