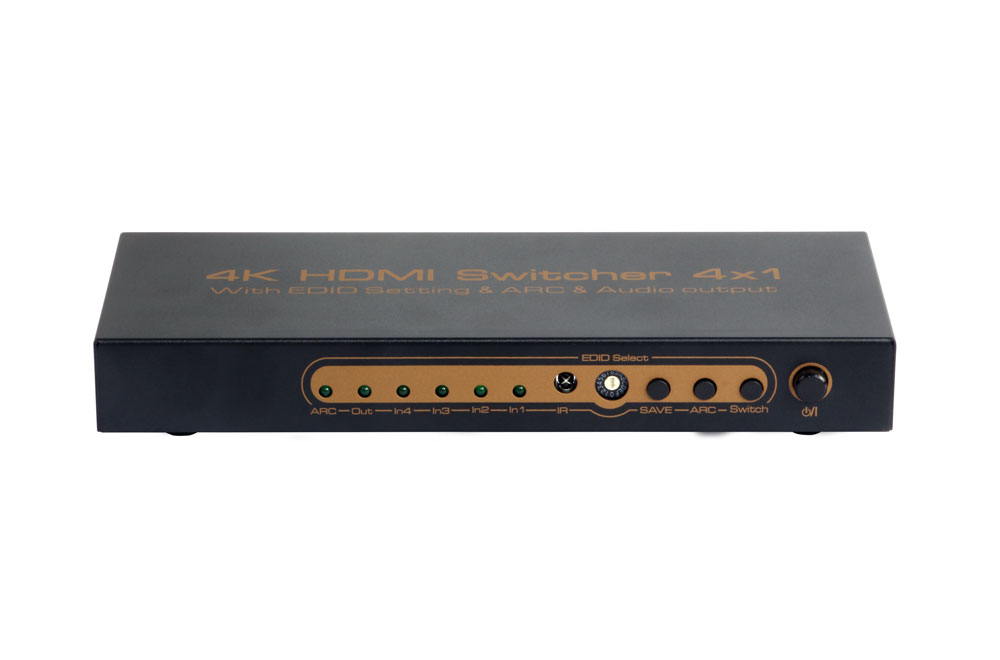

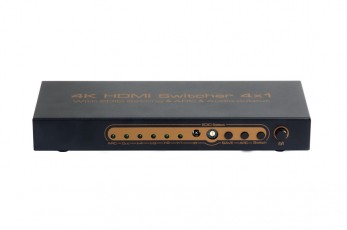

4K HDMI Switcher 4x1
This product is a 4-Port UHD HDMI Switcher. You can connect 4 HDMI source devices to HDMI inputs, and switches easily between the four HDMI sources. At the same time, the switcher can extract the input HDMI audio out by the Optical port and the LR port..
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES：
- 4 x HDMI input and 1 x HDMI output，can extract the Input HDMI Audio Signal, Supports 1x SPDIF optical digital audio output and 2 channel RCA analog audio output
- HDMI supports Full HD,3D and 4K2K video
- Supports deep color 30bit, 36bit,48bit
- Supports Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Supports HDMI Digital audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Supports 15 built-in EDID mode, can be used flexibly
- Support EDID save for each input source channel, to achieve fast change
- Supports ARC ,TV audio will return and out by the Optical Port; Supports HDMI audio separation, can output by optical and RCA at the same time
- Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
- Support signal retiming
- No loss of quality. Support input or output up to 15metres AWG26 HDMI standard cable length
- Power-off memory
- Supports wide range voltage DC input (DC5V~12V)
- HDMI resolution .........................up to 4K/30Hz, 1080P/1080I/720P/576P/480P/60Hz
- Support video color format ....................24bit/deep color 30bit/36bit/48bit
- Support HDMI audio format..........DTS-HD/Dolby-trueHD/LPCM/DTS/Dolby-AC3/DSD
- HDMI Max bandwidth.................................340MHz
- HDMI Max baud rate...................................10.2Gbps
- Input/Output TMDS signal ..........................0.5~1.5Volts p-p (TTL)
- Input/Output DDC signal ..............................5Volts p-p (TTL)
- HDMI Input cable distance......................≤15m AWG26 HDMI standard cable
- HDMI Output cable distance ..........≤15m（1080P）/8m(4K) AWG26 HDMI standard cable
- Max working current....................................400mA
- Power adapter format Input: ...................... .AC 100V～240V 50HZ/60HZ; DC5V/1A
- Operating Temperature range ............................ -10 to +55℃
- Storage Temperature range........................... -20 to +60℃
- Operating Humidity range .......................10 to 90%RH (No Condensation)
- Storage Humidity range........................5 to 95%RH (No Condensation)
- Case Dimension (L x W x H) ......................... ...205x74x26 (mm)
- Weight...........................................370g
FEATURES：
- 4 x HDMI input and 1 x HDMI output，can extract the Input HDMI Audio Signal, Supports 1x SPDIF optical digital audio output and 2 channel RCA analog audio output
- HDMI supports Full HD,3D and 4K2K video
- Supports deep color 30bit, 36bit,48bit
- Supports Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Supports HDMI Digital audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Supports 15 built-in EDID mode, can be used flexibly
- Support EDID save for each input source channel, to achieve fast change
- Supports ARC ,TV audio will return and out by the Optical Port; Supports HDMI audio separation, can output by optical and RCA at the same time
- Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
- Support signal retiming
- No loss of quality. Support input or output up to 15metres AWG26 HDMI standard cable length
- Power-off memory
- Supports wide range voltage DC input (DC5V~12V)
- HDMI resolution .........................up to 4K/30Hz, 1080P/1080I/720P/576P/480P/60Hz
- Support video color format ....................24bit/deep color 30bit/36bit/48bit
- Support HDMI audio format..........DTS-HD/Dolby-trueHD/LPCM/DTS/Dolby-AC3/DSD
- HDMI Max bandwidth.................................340MHz
- HDMI Max baud rate...................................10.2Gbps
- Input/Output TMDS signal ..........................0.5~1.5Volts p-p (TTL)
- Input/Output DDC signal ..............................5Volts p-p (TTL)
- HDMI Input cable distance......................≤15m AWG26 HDMI standard cable
- HDMI Output cable distance ..........≤15m（1080P）/8m(4K) AWG26 HDMI standard cable
- Max working current....................................400mA
- Power adapter format Input: ...................... .AC 100V～240V 50HZ/60HZ; DC5V/1A
- Operating Temperature range ............................ -10 to +55℃
- Storage Temperature range........................... -20 to +60℃
- Operating Humidity range .......................10 to 90%RH (No Condensation)
- Storage Humidity range........................5 to 95%RH (No Condensation)
- Case Dimension (L x W x H) ......................... ...205x74x26 (mm)
- Weight...........................................370g
