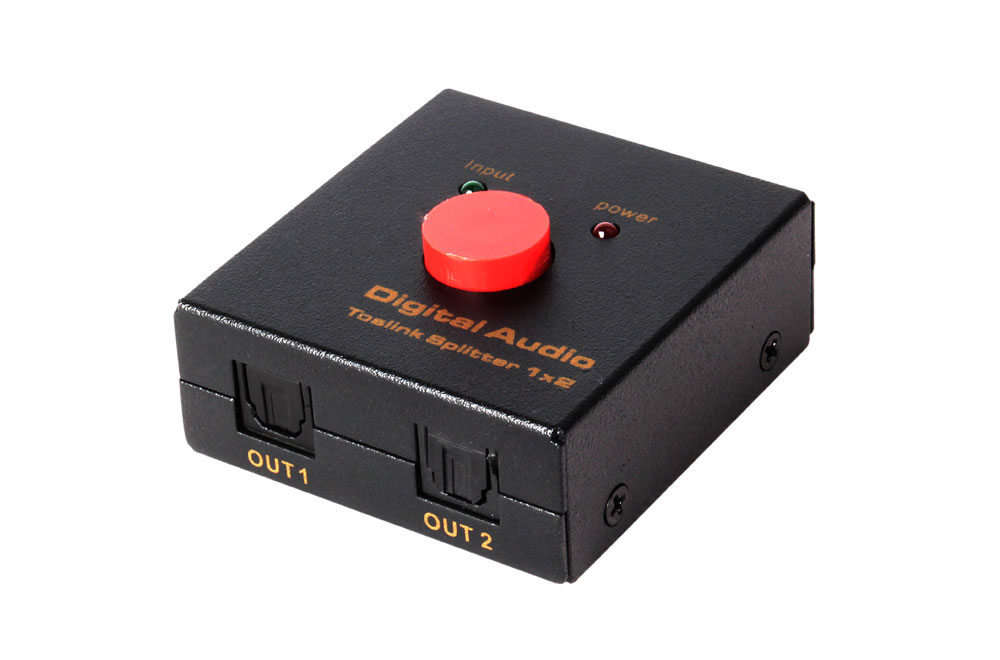

Toslink Switcher 1x2
The digital audio (S/PDIF) Toslink splitters 1x2 can let the user to connect and distribute one digital optical (S/PDIF) Toslink source to two amplifiers. The digital audio (S/PDIF) Toslink switch 2x1 can let the user to connect two digital optical Tos
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES:
- One ways of (S/PDIF) Toslink signal input splitter to two sets of (S/PDIF) TosLink signal
- receiving device.( Toslink splitter 1x2)
- Two ways of (S/PDIF) Toslink signals switch to one sets of (S/PDIF) TosLink signal receiving
- device. ( Toslink switch 2x1)
- Two ways of (S/PDIF) coax signals switch to one sets of (S/PDIF) coax signal receiving
- device,Or one ways of (S/PDIF) coax signal input switch split to two sets of (S/PDIF) coax
- signal receiving device.(Coax Bi-directional Switch，only can output signal to one av
- amplifier when used as the coax splitter 1x2).
- Audio format support : LPCM2.0/DTS/Dolby-AC3
- The highest support 192 KHz sampling rate.
- Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 30m.
- (Toslink splitter 1x2 and Toslink switch 2x1)
- Use the standard coaxial cable output can be up to 10m.(Coax Bi-directional Switch)
- Installs in minutes
SPECIFICATIONS:
- Support audio format....................LPCM2.0/DTS/Dolby-AC3
- Peak wavelength....................................650nm
- Max baud rate...................................25Mbps
- Optical fiber cable output distance ..≤30m(Use the optical fiber cable loss less the 0 .2Db/m)
- Coaxial cable output distance........ ≤10m(Use the standard coaxial cable )
- Max working current...........................50mA/5V DC
- Operating Temperature range........................(0 to +40℃ )
- Operating Humidity range................5 to 85%RH (No Condensation)
- Storage Temperature range.....................(-10 to +55℃ )
- Storage Humidity range................0 to 90%RH (No Condensation)
- Dimension (L x W x H).........................60x48.5x20 (mm)
- Weight.......................................75g
Operation:
FEATURES:
SPECIFICATIONS:
- One ways of (S/PDIF) Toslink signal input splitter to two sets of (S/PDIF) TosLink signal
- receiving device.( Toslink splitter 1x2)
- Two ways of (S/PDIF) Toslink signals switch to one sets of (S/PDIF) TosLink signal receiving
- device. ( Toslink switch 2x1)
- Two ways of (S/PDIF) coax signals switch to one sets of (S/PDIF) coax signal receiving
- device,Or one ways of (S/PDIF) coax signal input switch split to two sets of (S/PDIF) coax
- signal receiving device.(Coax Bi-directional Switch，only can output signal to one av
- amplifier when used as the coax splitter 1x2).
- Audio format support : LPCM2.0/DTS/Dolby-AC3
- The highest support 192 KHz sampling rate.
- Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 30m.
- (Toslink splitter 1x2 and Toslink switch 2x1)
- Use the standard coaxial cable output can be up to 10m.(Coax Bi-directional Switch)
- Installs in minutes
SPECIFICATIONS:
- Support audio format....................LPCM2.0/DTS/Dolby-AC3
- Peak wavelength....................................650nm
- Max baud rate...................................25Mbps
- Optical fiber cable output distance ..≤30m(Use the optical fiber cable loss less the 0 .2Db/m)
- Coaxial cable output distance........ ≤10m(Use the standard coaxial cable )
- Max working current...........................50mA/5V DC
- Operating Temperature range........................(0 to +40℃ )
- Operating Humidity range................5 to 85%RH (No Condensation)
- Storage Temperature range.....................(-10 to +55℃ )
- Storage Humidity range................0 to 90%RH (No Condensation)
- Dimension (L x W x H).........................60x48.5x20 (mm)
- Weight.......................................75g
Operation:
