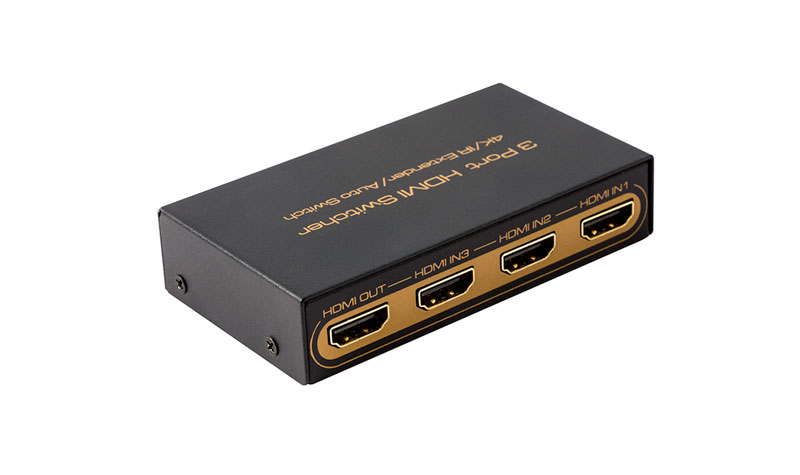

3 Port HDMI Switcher
The device can switch 3 HDMI Inputs to one HDMI Output, It can easily switch three routes of HD Source to any one HD display or projector.
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- Feature：
- Three HDMI Inputs switch to one HDMI Output
- Support 4K
- Support Remote control and HDMI auto switch.
- LED Status Light shows clearly the working state.
- HDMI Input and Output distance can be up to 6m using the AWG26 standard HDMI Cable.
- Easy-Install
- HDMI Resolution..24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P
- Deep Color ....24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit//2160P
- HDMI In/Out Supported Audio Format...................... DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- HDMI Channel Max Bandwidth.....................225MHz
- Input / Output DDC signal...................... 5Vp-p(TTL)
- HDMI Input Cable Length..............≤6m AWG26 HDMI standard cable
- HDMI Output Cable Length..............≤6m AWG26 HDMI standard cable
- Max Working Current.............................350mA
- Working Temperature Range........................(-0 to +40℃)
- Working Humidity Range...............5 to 85%RH（No Condensation）
- Size.............................95.2x52.9x20.8 (mm)
- Weight....................................122g
Feature：
- Three HDMI Inputs switch to one HDMI Output
- Support 4K
- Support Remote control and HDMI auto switch.
- LED Status Light shows clearly the working state.
- HDMI Input and Output distance can be up to 6m using the AWG26 standard HDMI Cable.
- Easy-Install
- HDMI Resolution..24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P
- Deep Color ....24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit//2160P
- HDMI In/Out Supported Audio Format...................... DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- HDMI Channel Max Bandwidth.....................225MHz
- Input / Output DDC signal...................... 5Vp-p(TTL)
- HDMI Input Cable Length..............≤6m AWG26 HDMI standard cable
- HDMI Output Cable Length..............≤6m AWG26 HDMI standard cable
- Max Working Current.............................350mA
- Working Temperature Range........................(-0 to +40℃)
- Working Humidity Range...............5 to 85%RH（No Condensation）
- Size.............................95.2x52.9x20.8 (mm)
- Weight....................................122g
