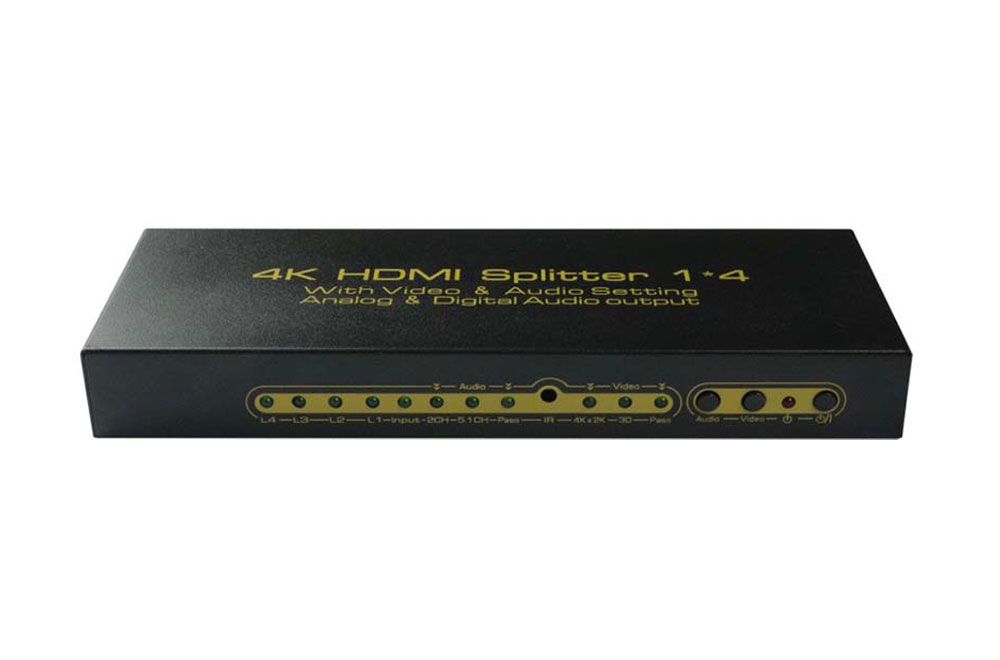

HDMI Splitter 1X4 Audio (SPDIF)
The 1x4 HDMI Splitter use a single HDMI source，accessing to multiple HDMI sinks. The Splitter allows one HD source to be split easily to four HDMI compatible monitors or projectors. It also supports extra analog stereo audio output and digital SPDIF aud
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES:
- One HDMI input signal split to four HDMI sink devices
- Support 4K full HD signal input and output (The output port 4 only can support the 3D signal output)
- Support analog stereo audio and digital audio(SPDIF/Toslink) output (the function can not work when the video output is 4KX2K Mode)
- Support deep color 24bit,30bit, 36bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- HDMI audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support LPCM2.0/DTS/Dolby-AC3 digital audio(SPDIF/Toslink) output
- The video and audio output mode can be controlled by the remote or R/M or by pressing s the switch button.
- Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
- LED status indication, it can tell us the working state of the device very easily.
- Support signal retiming
- Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC 5V/1A power supply
SPECIFICATIONS: HDSP0001M1
- HDMI resolution .............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format ..................24bit,30bit,36bit deep color
- Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Digital audio output format...................LPCM2.0/DTS/Dolby-AC3
- Max bandwidth...............................340MHz
- Max baud rate.................................10.2Gbps
- Input/Output TMDS signal .................... 0.5~1.5Volts p-p（TTL）
- Input/Output DDC signal ....................... 5Volts p-p (TTL)
- Input cable distance...... ...............≤15m AWG26 HDMI standard cable
- Output cable distance...................≤20m AWG26 HDMI standard cable
- Max working current..............................700mA
- Power adapter format..Input: ...............AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
- Operating Temperature range....................... (-0 to +40℃)
- Operating Humidity range.................5 to 90%RH (No Condensation)
- Dimension (L x W x H) ......................205x74x226 (mm)
- Weight......................................360g
FEATURES:
SPECIFICATIONS: HDSP0001M1
- One HDMI input signal split to four HDMI sink devices
- Support 4K full HD signal input and output (The output port 4 only can support the 3D signal output)
- Support analog stereo audio and digital audio(SPDIF/Toslink) output (the function can not work when the video output is 4KX2K Mode)
- Support deep color 24bit,30bit, 36bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- HDMI audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support LPCM2.0/DTS/Dolby-AC3 digital audio(SPDIF/Toslink) output
- The video and audio output mode can be controlled by the remote or R/M or by pressing s the switch button.
- Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
- LED status indication, it can tell us the working state of the device very easily.
- Support signal retiming
- Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC 5V/1A power supply
SPECIFICATIONS: HDSP0001M1
- HDMI resolution .............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format ..................24bit,30bit,36bit deep color
- Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Digital audio output format...................LPCM2.0/DTS/Dolby-AC3
- Max bandwidth...............................340MHz
- Max baud rate.................................10.2Gbps
- Input/Output TMDS signal .................... 0.5~1.5Volts p-p（TTL）
- Input/Output DDC signal ....................... 5Volts p-p (TTL)
- Input cable distance...... ...............≤15m AWG26 HDMI standard cable
- Output cable distance...................≤20m AWG26 HDMI standard cable
- Max working current..............................700mA
- Power adapter format..Input: ...............AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
- Operating Temperature range....................... (-0 to +40℃)
- Operating Humidity range.................5 to 90%RH (No Condensation)
- Dimension (L x W x H) ......................205x74x226 (mm)
- Weight......................................360g
