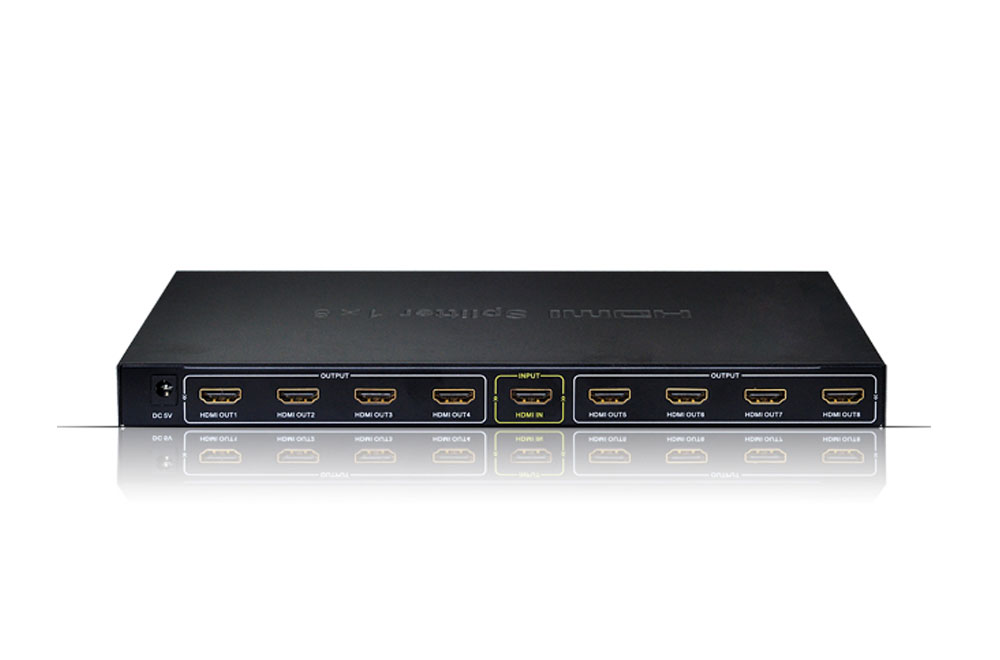

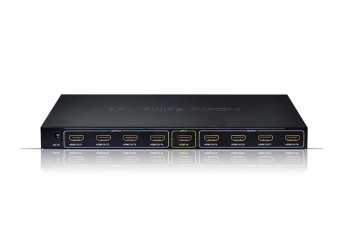

HDMI Splitter 1x8（1.3B）
The mini 1x8 HDMI Splitter use a single HDMI source，accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cabl
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES:
- One HDMI input signal split to eight HDMI sink devices
- Support 3D
- Support deep color 24bit,30bit, 36bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support signal retiming
- Support input up to 15metres AWG26 HDMI standard cable length,
- output up to 20metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC5V/3A power supply
- HDMI resolution .............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format ..................24bit,30bit,36bit deep color
- Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Max bandwidth..............................225MHz
- Max baud rate.................................6.75Gbps
- Input/Output TMDS signal .................... 0.5~1.5Volts p-p（TTL）
- Input/Output DDC signal ....................... 5Volts p-p (TTL)
- Input cable distance...... ...............≤15m AWG26 HDMI standard cable
- Output cable distance...................≤20m AWG26 HDMI standard cable
- Max working current..............................2000mA
- Power adapter format..Input: .............AC (50HZ, 60HZ) :100V-240V; Output: DC5V/3A
- Operating Temperature range....................... (-15 to +55℃)
- Operating Humidity range.................5 to 90%RH (No Condensation)
- Dimension (L x W x H) ......................280X138X25 (mm)
- Weight........................................875g
FEATURES:
- One HDMI input signal split to eight HDMI sink devices
- Support 3D
- Support deep color 24bit,30bit, 36bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support signal retiming
- Support input up to 15metres AWG26 HDMI standard cable length,
- output up to 20metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC5V/3A power supply
- HDMI resolution .............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format ..................24bit,30bit,36bit deep color
- Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Max bandwidth..............................225MHz
- Max baud rate.................................6.75Gbps
- Input/Output TMDS signal .................... 0.5~1.5Volts p-p（TTL）
- Input/Output DDC signal ....................... 5Volts p-p (TTL)
- Input cable distance...... ...............≤15m AWG26 HDMI standard cable
- Output cable distance...................≤20m AWG26 HDMI standard cable
- Max working current..............................2000mA
- Power adapter format..Input: .............AC (50HZ, 60HZ) :100V-240V; Output: DC5V/3A
- Operating Temperature range....................... (-15 to +55℃)
- Operating Humidity range.................5 to 90%RH (No Condensation)
- Dimension (L x W x H) ......................280X138X25 (mm)
- Weight........................................875g
