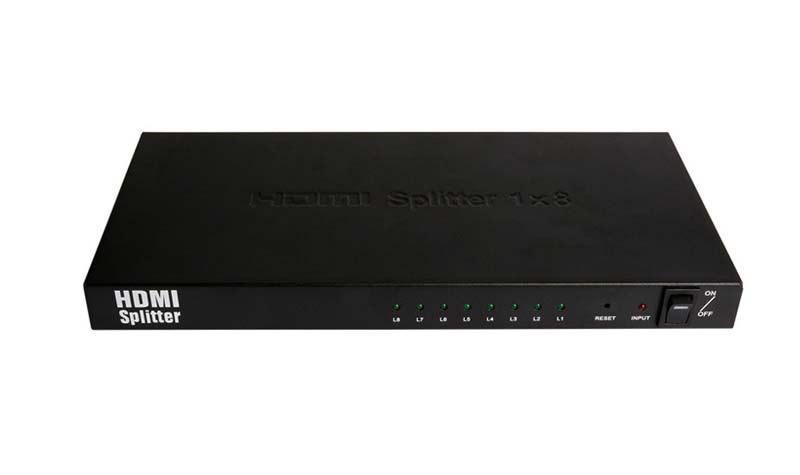

HDMI Splitter 1x8（1.4V）
The 1x8 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source，accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES:
- One HDMI 1.4a input signal split to eight HDMI 1.4a sink devices
- Support Full HD, Full 3D
- Support 4K*2K resolution
- Support CEC
- Support deep color 30bit, 36bit, 48bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
- /DSD/HD（HBR）
- Support signal retiming
- Support input up to 15metres AWG26 HDMI standard cable length,
- output up to 20metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC12V/3A power supply
- HDMI version................................. HDMI 1.4a
- HDMI resolution ...............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format .....................24bit/deep color 30bit,36bit, 48bit
- Support audio format......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
- Max bandwidth.................................340MHz
- Max baud rate..................................10.2Gbps
- Input/Output TMDS signal ....................... ...0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ........................... 5Volts p-p (TTL)
- Input cable distance...... .........................≤15m HDMI AWG26
- Output cable distance....................≤20m AWG26 HDMI standard cable
- Max working current.................................... 2A
- Power adapter format..Input: ..........AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
- Operating Temperature range......................... (-15 to +55℃)
- Operating Humidity range...................5 to 90%RH (No Condensation)
- Dimension (L x W x H) ........................ 280X138X25(mm)
- Weight.........................................871g
FEATURES:
- One HDMI 1.4a input signal split to eight HDMI 1.4a sink devices
- Support Full HD, Full 3D
- Support 4K*2K resolution
- Support CEC
- Support deep color 30bit, 36bit, 48bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
- /DSD/HD（HBR）
- Support signal retiming
- Support input up to 15metres AWG26 HDMI standard cable length,
- output up to 20metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC12V/3A power supply
- HDMI version................................. HDMI 1.4a
- HDMI resolution ...............24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format .....................24bit/deep color 30bit,36bit, 48bit
- Support audio format......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
- Max bandwidth.................................340MHz
- Max baud rate..................................10.2Gbps
- Input/Output TMDS signal ....................... ...0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ........................... 5Volts p-p (TTL)
- Input cable distance...... .........................≤15m HDMI AWG26
- Output cable distance....................≤20m AWG26 HDMI standard cable
- Max working current.................................... 2A
- Power adapter format..Input: ..........AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
- Operating Temperature range......................... (-15 to +55℃)
- Operating Humidity range...................5 to 90%RH (No Condensation)
- Dimension (L x W x H) ........................ 280X138X25(mm)
- Weight.........................................871g
