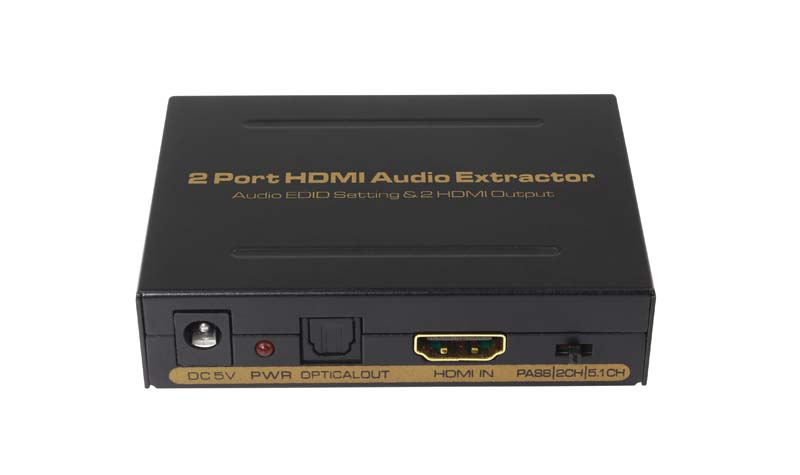

2 Port HDMI Audio Extractor
The 2 Port HDMI Audio Extractor can allow two HD Display/TV connected to one HDMI Source and also can extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or 2 channel analog audio out
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES:
- 1X HDMI input and 2X HDMI output，can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 2 channel RCA analog audio output
- Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
- Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
- Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
- LED indication: when source or sink is working, LED relative to is light.
- Uses 24bit /192KHz DAC
- No loss of quality
- Installs in minutes
- DC5V/1A power adapter
- HDMI resolution ........................... up to 1080P/50/60fs（3D 24/30fs）
- Support video color format ........................24bit/deep color 30bit,36bit
- HDMI Audio Format........DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
- SPDIF Digital audio format................Dolby Digital (AC3)/DTS/LPCM 2CH
- HDMI Max bandwidth..................................225MHz
- HDMI Max baud rate.................................6.75Gbps
- Input/Output TMDS signal .........................0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ............................ 5Volts p-p (TTL)
- DAC sample frequency range..........................32～192 KHz
- DAC Bit rate range................................16～24 Bit
- Analog output level(1kHz@0dB)......................1V RMS
- SNR @ 0dB(CCIR/ARM)..............................≥90dB
- Distortion.......................................≤0.1%
- Frequency response..............................20Hz~20KHz
- HDMI input cable distance................≤15m AWG26 HDMI standard cable
- HDMI output cable distance.................≤20m AWG26 HDMI standard cable
- Max working current ...................................600mA
- Power adapter format Input ....................... AC 100V～240V 50HZ/60Hz, DC5V/1A
- Operating Temperature range ............................ -10 to +55℃
- Storage Temperature range........................... -20 to +60℃
- Operating Humidity range .....................10 to 90%RH (No Condensation)
- Storage Humidity range......................5 to 95%RH (No Condensation)
- Case Dimension (L x W x H) ......................... 85x62x21 (mm)
- Weight ......................................... 130g
FEATURES:
- 1X HDMI input and 2X HDMI output，can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 2 channel RCA analog audio output
- Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
- Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
- Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
- LED indication: when source or sink is working, LED relative to is light.
- Uses 24bit /192KHz DAC
- No loss of quality
- Installs in minutes
- DC5V/1A power adapter
- HDMI resolution ........................... up to 1080P/50/60fs（3D 24/30fs）
- Support video color format ........................24bit/deep color 30bit,36bit
- HDMI Audio Format........DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
- SPDIF Digital audio format................Dolby Digital (AC3)/DTS/LPCM 2CH
- HDMI Max bandwidth..................................225MHz
- HDMI Max baud rate.................................6.75Gbps
- Input/Output TMDS signal .........................0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ............................ 5Volts p-p (TTL)
- DAC sample frequency range..........................32～192 KHz
- DAC Bit rate range................................16～24 Bit
- Analog output level(1kHz@0dB)......................1V RMS
- SNR @ 0dB(CCIR/ARM)..............................≥90dB
- Distortion.......................................≤0.1%
- Frequency response..............................20Hz~20KHz
- HDMI input cable distance................≤15m AWG26 HDMI standard cable
- HDMI output cable distance.................≤20m AWG26 HDMI standard cable
- Max working current ...................................600mA
- Power adapter format Input ....................... AC 100V～240V 50HZ/60Hz, DC5V/1A
- Operating Temperature range ............................ -10 to +55℃
- Storage Temperature range........................... -20 to +60℃
- Operating Humidity range .....................10 to 90%RH (No Condensation)
- Storage Humidity range......................5 to 95%RH (No Condensation)
- Case Dimension (L x W x H) ......................... 85x62x21 (mm)
- Weight ......................................... 130g
