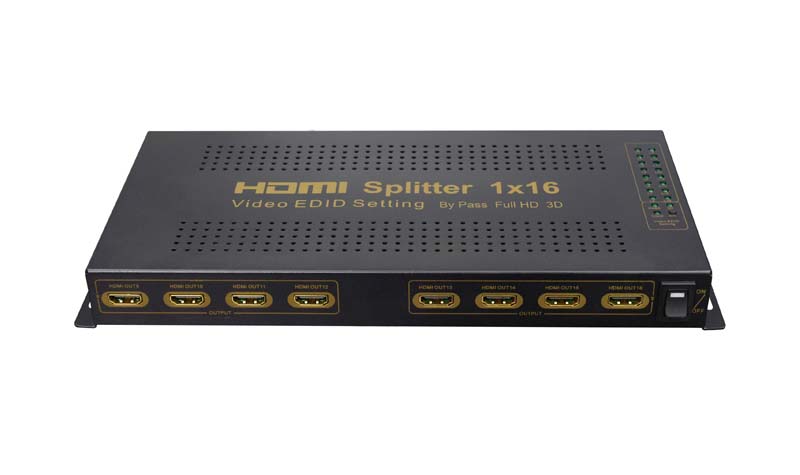

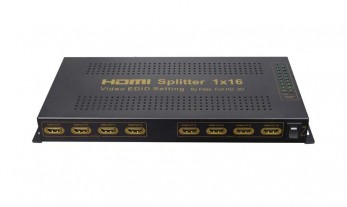

1x16 HDMI Splitter
The 1x16 HDMI Splitter allows one HD source to be split easily to sixteen support HDMI signal inputs display .And the 1X16 splitter also supports video EDID setting, The user can do choose one video mode out from the three video modes that include 1080P/3
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- FEATURES:
- One HDMI input signal split to sixteen HDMI sink devices
- Support Video Out Resolution Set-up, it can set up as the 1080P or 3D video out, Plus it can set up as the Video Pass-through out, at this mode the splitter will output the video resolution as the output display can support.
- Support 1080P 3D HDMI signal input and output
- Support deep color 24bit, 30bit, 36bit
- Support Blue-Ray 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support signal retiming
- Support input up to 10metres AWG26 HDMI standard cable length,
- output up to 10metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC12V/3A power supply
- HDMI resolution ..........24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i
- Support video color format ...................24bit/30bit,36bit deep color
- Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Max bandwidth...............................225MHz
- Max transmission bandwidth..........................6.75Gbps
- Input/Output TMDS signal .....................0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ........................ 5Volts p-p (TTL)
- Input cable distance...... ...............≤10m AWG26 HDMI standard cable
- Output cable distance.................≤10m AWG26 HDMI standard cable
- Max working current....................................2.0A
- Power adapter format..Input: ..........AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
- Operating Temperature range........................ (0 to +40℃)
- Operating Humidity range.................5 to 85%RH (No Condensation)
- Dimension (L x W x H) .......................297x 137x 33 (mm)
- Weight......................................1020g
Operation:
FEATURES:
- One HDMI input signal split to sixteen HDMI sink devices
- Support Video Out Resolution Set-up, it can set up as the 1080P or 3D video out, Plus it can set up as the Video Pass-through out, at this mode the splitter will output the video resolution as the output display can support.
- Support 1080P 3D HDMI signal input and output
- Support deep color 24bit, 30bit, 36bit
- Support Blue-Ray 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support signal retiming
- Support input up to 10metres AWG26 HDMI standard cable length,
- output up to 10metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC12V/3A power supply
- HDMI resolution ..........24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i
- Support video color format ...................24bit/30bit,36bit deep color
- Support audio format.......DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Max bandwidth...............................225MHz
- Max transmission bandwidth..........................6.75Gbps
- Input/Output TMDS signal .....................0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal ........................ 5Volts p-p (TTL)
- Input cable distance...... ...............≤10m AWG26 HDMI standard cable
- Output cable distance.................≤10m AWG26 HDMI standard cable
- Max working current....................................2.0A
- Power adapter format..Input: ..........AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
- Operating Temperature range........................ (0 to +40℃)
- Operating Humidity range.................5 to 85%RH (No Condensation)
- Dimension (L x W x H) .......................297x 137x 33 (mm)
- Weight......................................1020g
Operation:
