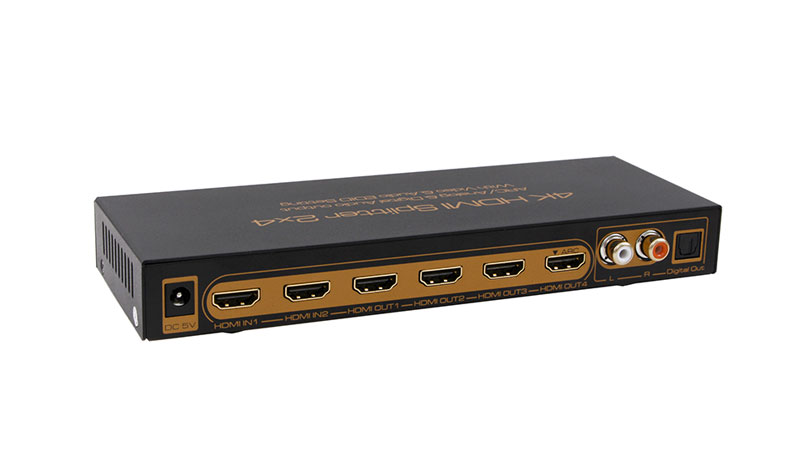

HDMI Splitter 2x4
The 2x4 HDMI Splitter can connect two HD Sources with Four HD Displays, which can easily distribute any input of the two HD Sources to the four HD Displays simultaneously and do audio extract by one Toslink port and One LR Port. It supports 4K, ARC,Audio
product infomation
- Item Name：
- Factory：Hiyou
- Origin：China
- Time Left：299d 21h(0000-00-00 00:00:00)
- Feature：
- Two HDMI input signal split to four HDMI sink devices
- Support 4K full HD signal input and output
- Support analog stereo audio and digital audio(SPDIF/Toslink) output
- Digital audio port of Toslink can support 192Khz Sampling Rate(LPCM2.0 Audio Format), also can support LPCM 2.0, Dolby-AC3, DTS audio output.
- It supports 2.0CH, 5.1CH and ADV Three Audio EDID and 3D, 4K, Pass Three Video EDID set.
- It supports ARC.
- Support Power Off Memory Function, it can remember the last working state. When power on again, it can back to the last working state.
- LED Status Light shows clearly the working state.
- HDMI Input and Output distance can be up to 8m using the AWG26 standard HDMI Cable.
- No Loss of Signal
- Easy-Install
- DC5V1A Power Adaptor
- HDMI Resolution..24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P
- Deep Color ....24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit//2160P
- HDMI In/Out Supported Audio Format...................... DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Digital Audio Output Supported Audio Format...........LPCM2.0/Dolby AC3/DTS
- Digital Audio Output Sampling Rate.........32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
- Digital Audio Output Max Bandwidth ....................25MHz
- Analog Audio Max Output Voltage....................... 2V P_P
- Analog Audio Max Output Frequency Range.................50Hz~18KHZ
- HDMI Channel Max Bandwidth.....................300MHz
- Input / Output DDC signal...................... 5Vp-p(TTL)
- HDMI Input Cable Length..............≤8m AWG26 HDMI standard cable
- HDMI Output Cable Length............≤8m AWG26 HDMI standard cable
- Max Working Current...........................700mA
- Power Adaptor Format:......AC Input（50 /60HZ）:100V-240V;DC Output:5V/1A
- Working Temperature Range....................(-0 to +40℃)
- Working Humidity Range.............5 to 85%RH（No Condensation）
- Size............................. 205x74x26 (mm)
- Weight..................................370g
Feature：
- Two HDMI input signal split to four HDMI sink devices
- Support 4K full HD signal input and output
- Support analog stereo audio and digital audio(SPDIF/Toslink) output
- Digital audio port of Toslink can support 192Khz Sampling Rate(LPCM2.0 Audio Format), also can support LPCM 2.0, Dolby-AC3, DTS audio output.
- It supports 2.0CH, 5.1CH and ADV Three Audio EDID and 3D, 4K, Pass Three Video EDID set.
- It supports ARC.
- Support Power Off Memory Function, it can remember the last working state. When power on again, it can back to the last working state.
- LED Status Light shows clearly the working state.
- HDMI Input and Output distance can be up to 8m using the AWG26 standard HDMI Cable.
- No Loss of Signal
- Easy-Install
- DC5V1A Power Adaptor
- HDMI Resolution..24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i,24/30/2160P
- Deep Color ....24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit//2160P
- HDMI In/Out Supported Audio Format...................... DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Digital Audio Output Supported Audio Format...........LPCM2.0/Dolby AC3/DTS
- Digital Audio Output Sampling Rate.........32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
- Digital Audio Output Max Bandwidth ....................25MHz
- Analog Audio Max Output Voltage....................... 2V P_P
- Analog Audio Max Output Frequency Range.................50Hz~18KHZ
- HDMI Channel Max Bandwidth.....................300MHz
- Input / Output DDC signal...................... 5Vp-p(TTL)
- HDMI Input Cable Length..............≤8m AWG26 HDMI standard cable
- HDMI Output Cable Length............≤8m AWG26 HDMI standard cable
- Max Working Current...........................700mA
- Power Adaptor Format:......AC Input（50 /60HZ）:100V-240V;DC Output:5V/1A
- Working Temperature Range....................(-0 to +40℃)
- Working Humidity Range.............5 to 85%RH（No Condensation）
- Size............................. 205x74x26 (mm)
- Weight..................................370g
