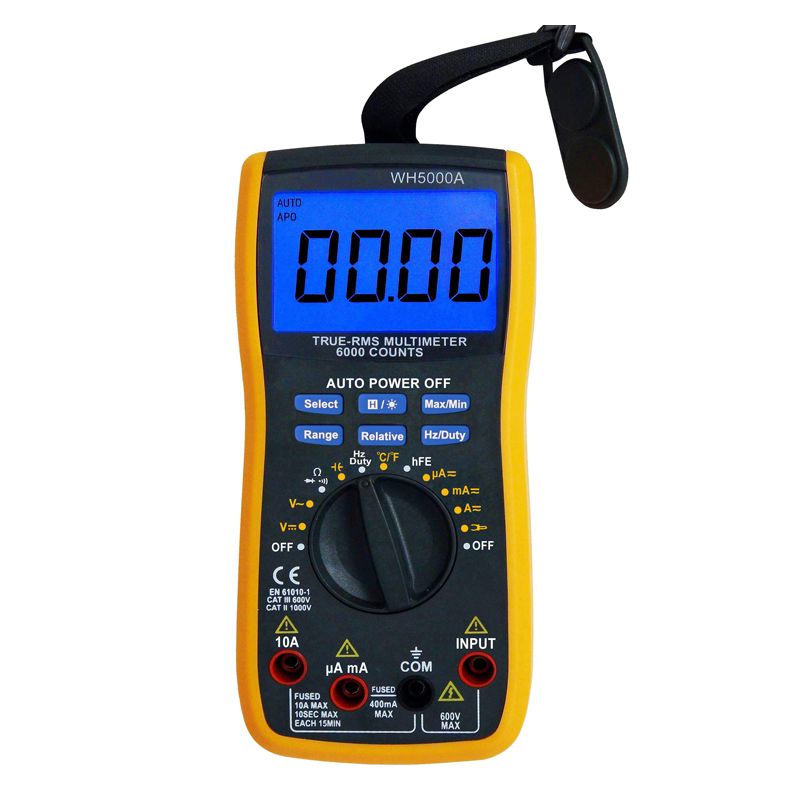

Poular large screen multimeter

Poular large screen multimeter
Thumbnail 1
  • Frank Xu ||Frank Xu ||Facebook ||Twitter ||
  • Old Price：$45.0000    Item No:HY-D6049
  • New Price：$21.3100
  • QTY: PCS
  • Ending:29d left
  • Store：10000
  • MINI Order：Pieces
  • 110001
  • 53.8K

product infomation

  • Item Name：
  • Factory：Hiyou
  • Origin：China
  • Time Left：299d 21h(0000-00-00 00:00:00)
  • Characteristic
    All round observation Large LCD
    Easy to read in dark condition with blue backlight
    Data hold function for easy reading after measurement
    With MAX and MIN value display
    Double fuse and anti-burn design, safe and reliable
    With frequency and temperature test function
    With PVC shockproof holster
    Can measure high current with clamp meter WH3302 or WH3303
    with 2mF capacitance test
    A magnetic button hook is convenient to adsorb on the surface of the iron object.



    Technology features
    DCV: 60m-600m-6-60-600V                                         ±0.5%
    ACV: 60m-600m-6-60-600V                                         ±1.0%
    DCA: 600u-6000u-60m-600m-10A                               ±1.8%
    ACA: 600u-6000u-60m-600m-10A                               ±2.0%
    Resistance: 600-6K-60K-600K-6M-60MΩ                    ±1.0%
    Capacitance: 40n-400n-4u-40u-400u-20mF                 ±5.0%
    Frequency: 9.99~9.99MHz                                            ±3.0%
    Temperature: -20ºC~1000ºC/-4ºF~1832ºF                   ±2.0%
    Duty cycle: 0.1%~99.9%                                               ±0.1%
    DCA(with extra clamp meter WH3302 or 3303):0A-600A      ±1.5%
    ACA(with extra clamp meter WH3302 or 3303):0A-600A      ±1.5%
    Description
    LCD size: 64x42mm
    Max display: 5999
    Low battery indication: yes
    Overload protection: yes
    Auto range: yes
    Diode test: yes
    Transistor test: yes
    Continuity buzzer test: yes
    Auto power off: yes
    Data hold: yes
    Backlight: yes
    Power supply: one 9V 6F22 batter
    Product size: 188x81x48mm
    Product weight: about 357g (with holster)
    Standard accessories: meter (with battery), holster, multi-function socket, test lead, thermocouple, manual  600A clamp jaw （optional）
